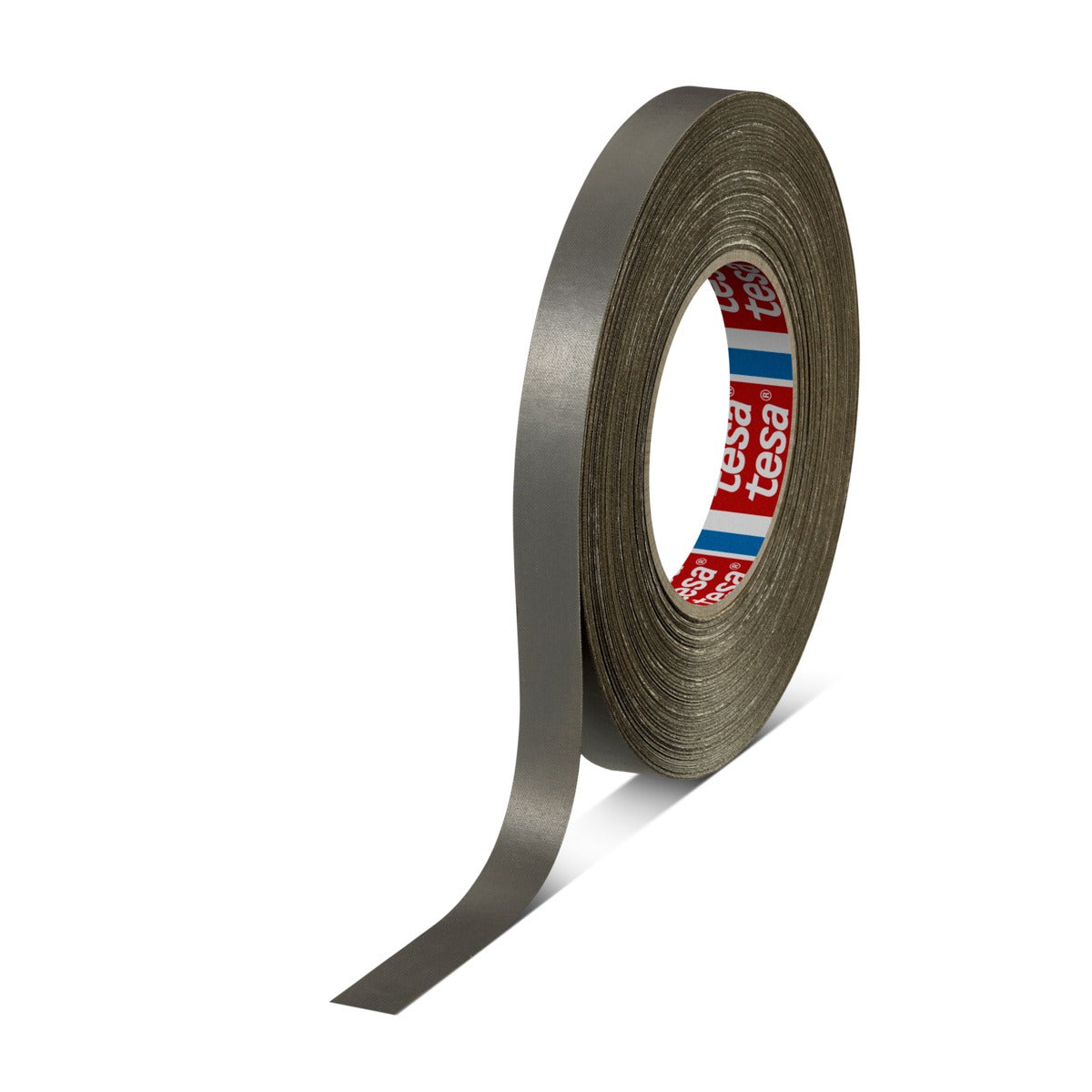

Tesaband 4657, gray, 50 m x 15 mm, Item No. 04657-00121-00 | 1 roll

Tesa® 4657, gray, 50 m x 15 mm, Item No. 04657-00121-00

tesa® 4657 is a high-quality, acrylate-coated fabric tape for demanding, temporary, and permanent masking and fastening applications.

Description

tesa® 4657 is a highly durable, acrylate-coated fabric tape with a cotton fabric backing (fabric density 145 threads/inch²) and a heat-curing natural rubber adhesive. It offers high tensile strength (105 N/cm), excellent puncture resistance, and strong adhesion (4.6 N/cm on steel), even at high temperatures up to 180 °C (30 min.). The tape is waterproof, colorfast, solvent-resistant, and abrasion-resistant, making it ideal for permanent applications. Thanks to its excellent tearability by hand, straight tear edge, and ease of use, it is ideally suited for the production of die-cut parts as well as for precise masking work. The standard version is PV0; additionally, a version with low unrolling (PV1) and a variant on a yellow glassine paper liner with a thickness of 76 µm (PV9) are available. The tape can be removed without leaving any residue even after exposure to high temperatures and is writable, making it extremely versatile for use in production and maintenance.

Key Features

• Base material: acrylic-coated cotton-based fabric
• Fabric density: 145 threads/inch²
• Adhesive: thermosetting natural rubber
• Tape color: gray
• Dimensions: 50 m x 15 mm (1 roll)
• Tape thickness: 290 µm
• Liner: paper, yellow, thickness 76 µm
• Versions: Standard PV0, low unwinding PV1, liner PV9
• Elongation at break: 7.5%
• Tensile strength: 105 N/cm
• Adhesive strength on steel: 4.6 N/cm
• Liner peel strength: 0.3 N/cm
• Temperature resistance: up to 180 °C (30 min.)
• Water resistance: good; abrasion resistance: very good
• Die-cut, writable, tears easily by hand, very straight tear edge
• Easy, residue-free removal even after exposure to heat

Applications

• Temporary and permanent masking of holes in automotive production (interior and exterior)
• Masking during industrial painting processes
• Partial masking during treatment with impregnating agents
• Covering threaded holes and drain holes
• Securing flat cables (e.g., to headliners, door panels, mirrors)
• Splicing in reel-to-reel production
• Manufacturing of stamped parts for technical applications

Summary

tesa® 4657 combines high mechanical strength, reliable adhesion, and excellent temperature and media resistance with ease of use and residue-free removal—the ideal solution for precise masking, fastening, and stamping applications in the industrial and automotive sectors.

For more information, please refer to the data sheets
