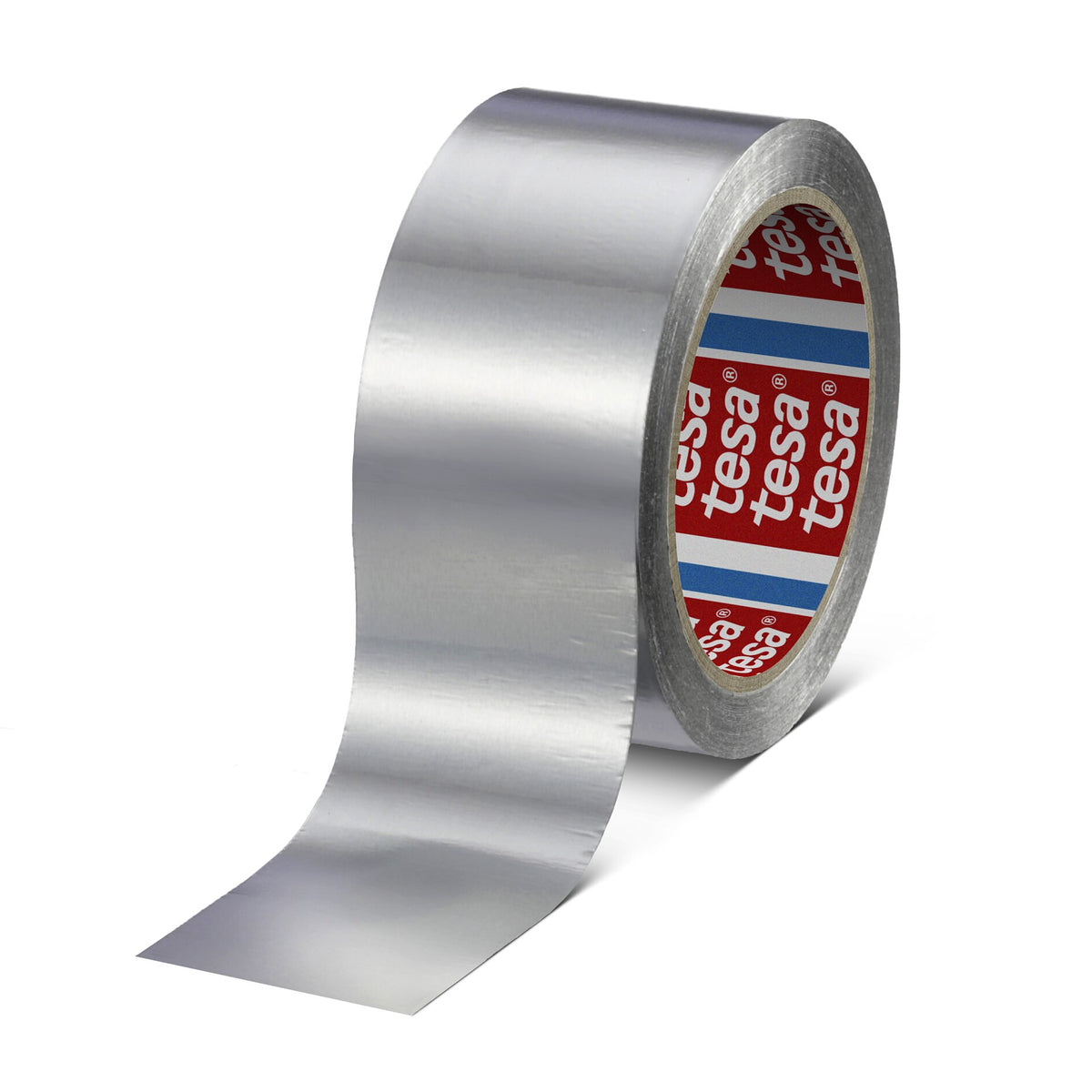

tesa 60630 Aluminum Adhesive Tape, 50 m x 50 mm, Matte Silver | 1 roll

tesa 60630 Aluminum Adhesive Tape, 50 m x 50 mm, matte silver

The flexible tesa 60630 aluminum adhesive tape is ideal for bonding, sealing, and insulating in demanding technical applications.

Description

The tesa 60630 aluminum adhesive tape is a flexible aluminum tape with a foil thickness of 30 µm and a transparent acrylate adhesive. It is specifically designed for bonding cooling lines and coils in the household appliance industry, as well as for joining and sealing in thermal insulation applications and for shafts, e.g., in the metal fabrication industry. The tape enables substrates to become electrically and thermally conductive, reflects heat and light, and provides a reliable seal against moisture, steam, and gas. Thanks to its high resistance to aging and flame retardancy in accordance with DIN 4102, Class B1, and UL 510A, it is ideally suited for permanent applications. Due to its high flexibility, it can be applied exceptionally well even on curved surfaces and offers excellent water resistance, good abrasion resistance, and high adhesive strength on various substrates.

Key Features

• Film thickness: 30 µm, total thickness: 65 µm
• Backing material: aluminum foil, appearance: reflective
• Adhesive: transparent acrylic adhesive
• Dimensions: 50 m x 50 mm
• Color: matte silver
• Electrically and thermally conductive
• Heat-reflective, heat- and light-reflective
• Seals against moisture, vapor, and gas
• Flame-retardant according to DIN 4102, Class B1, and UL 510A
• Operating temperature: -40 °C to 160 °C, minimum temperature resistance: -40 °C
• Elongation at break: 3%, tensile strength: 25 N/cm
• Water resistance: very good; abrasion resistance: good
• Adhesion to the substrate: 0.1 N/cm
• Adhesive strength (initial): Glass 7 N/cm, PE 4 N/cm, PVC 5.5 N/cm, Steel 8 N/cm
• Tearability by hand: very good, not easy to remove, not punchable
• Type of backing: none

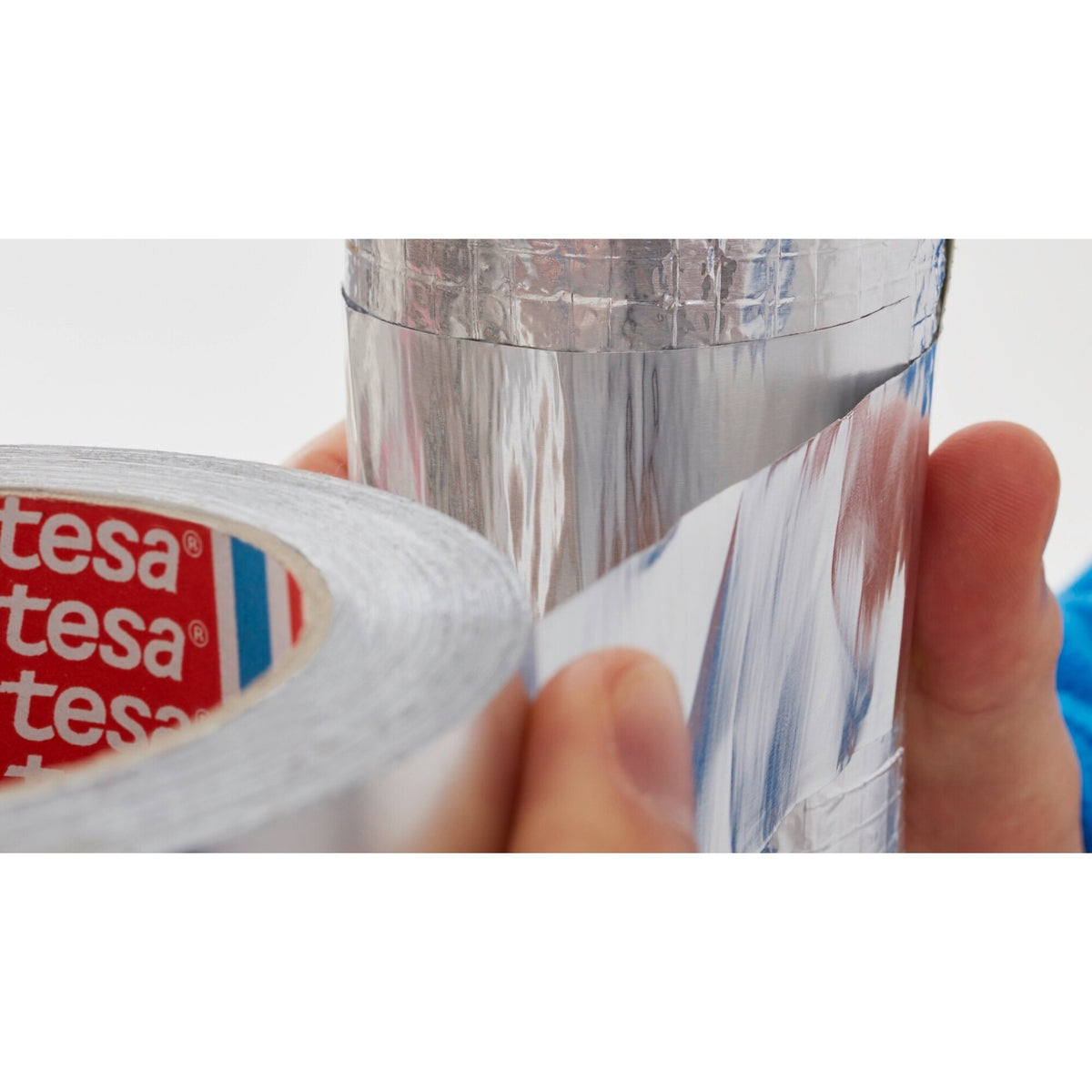

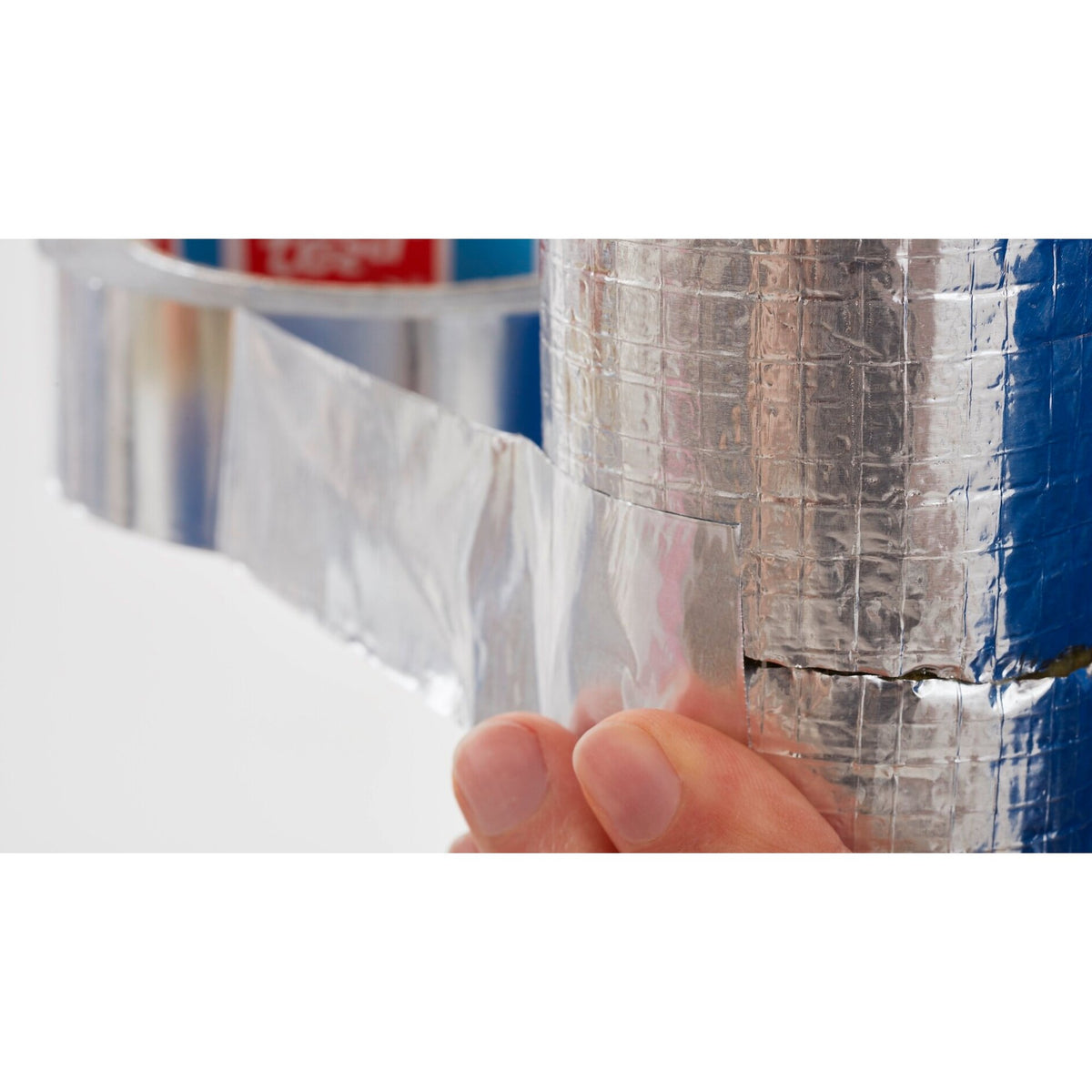

Applications

• Bonding of cooling lines and coils in the household appliance industry

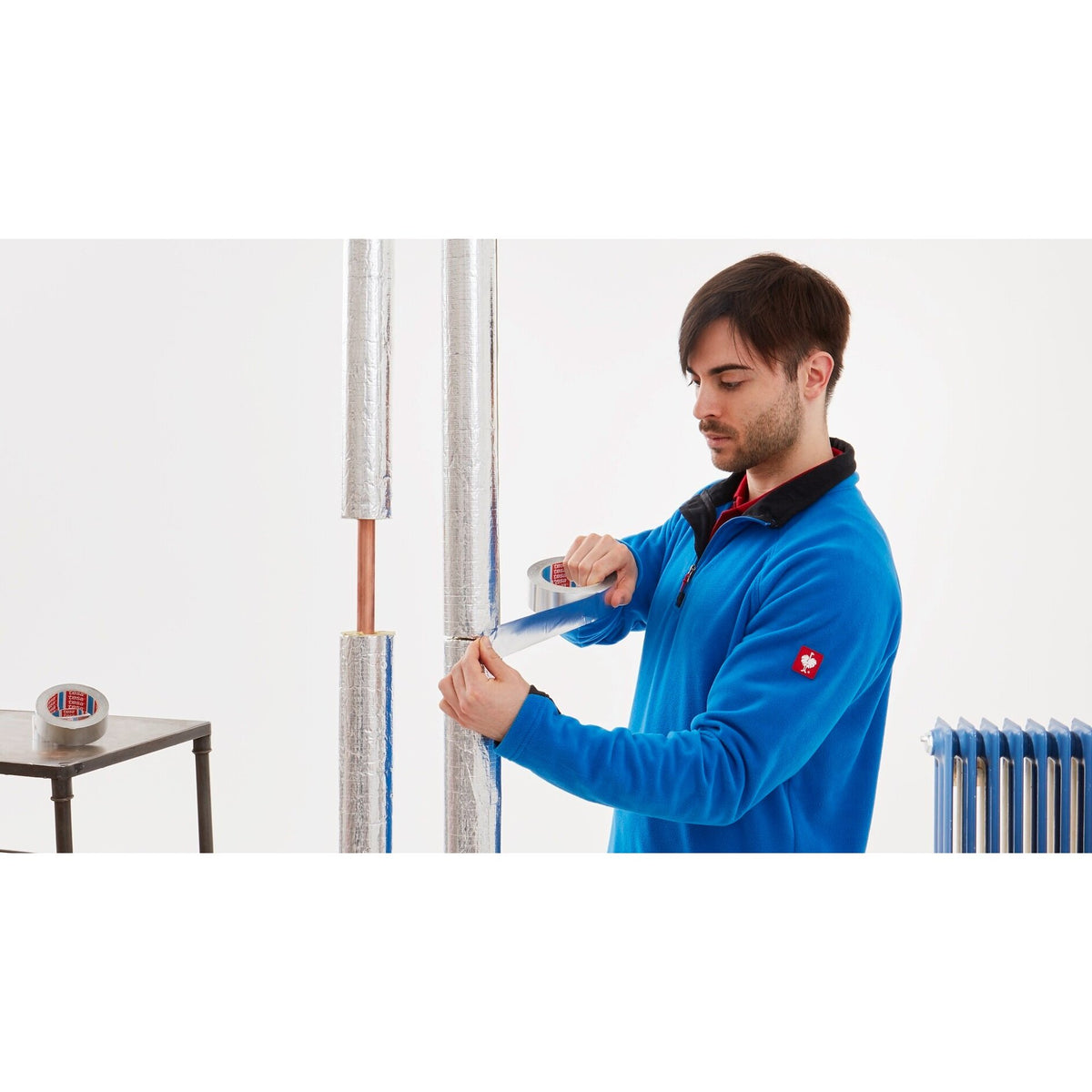

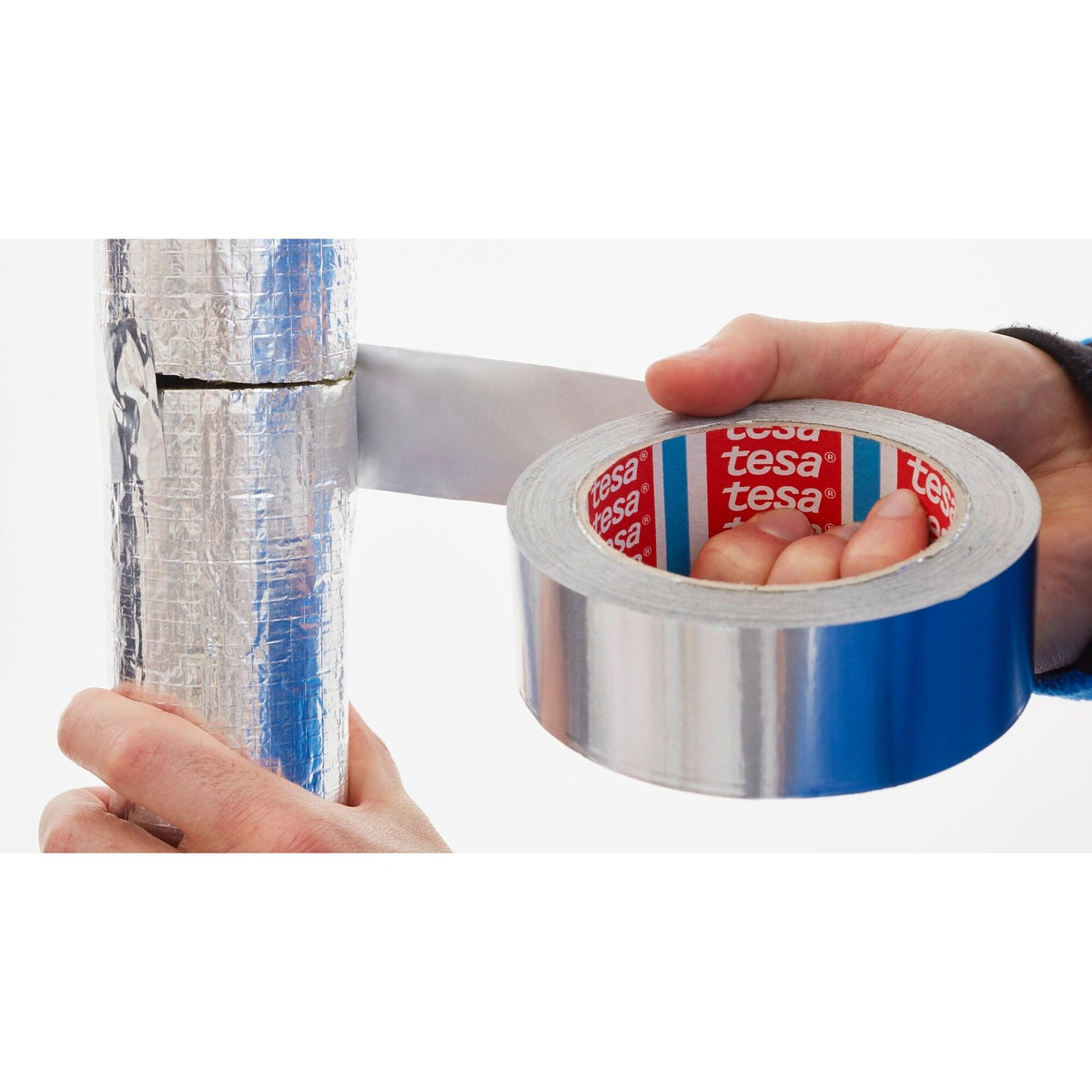

• Joining and sealing in thermal insulation applications
• Sealing and insulating shafts in the metal fabrication industry
• Reflective applications subject to heat and light exposure
• Permanent sealing against moisture, steam, and gas
• Applications on curved and uneven surfaces
• Technical applications with requirements for electrical and thermal conductivity

Summary

The tesa 60630 Aluminum Adhesive Tape combines high adhesive strength, flame resistance, and electrical and thermal conductivity with excellent conformability and durability, making it the ideal choice for professional, permanent bonding and insulation tasks.

For more information, please refer to the data sheets
